520mm programmed hydraulic Paper Cutting Machine with LCD screen
The Main Features of Hydraulic Industrial Paper Cutter
1. Import the main motor, to provide a strong power, import hydraulic valve, to ensure quality.
2. Cutting more easily, suitable for thickness cut paper.
3. Computer adjustment Cutter depth is convenient.
4. Program optimization level, pressure paper, cutting time, push paper size calibration point can be arbitrarily set, a number of self-test function.
5. Fault code display, counting function, program control can be set 99 group * 7 knife program.
6. To ensure the accuracy of push paper, the use of more stable.
7. Front infrared safety protection design, after the cover protection, in line with CE standards, the operation more secure.
8. Infrared laser indicator, clear and clear.
9. Double screw double guide paper push paper. After the platform without slot design.
10. Post-platform foldable design.
Description DB-5208A hydraulic paper cutting machine
DB-5208A hydraulic paper cutter machine is a programmed paper cutting machine, it is a industrail hydraulic paper cutter, very powerful cutting, we have our own QC department and R&D team. All of our paper cutter machine are higher quality with CE standard. Our paper cutting machine is easy for operation with english manual and working video. higher value and competitive prices.We have one year warranty for our Paper cutting machine.
Specifications
| Item | 520mm hydraulic paper cutting machine |
| Model no | DB-5208A |
| Max cutting size | 520mm |
| Min. cutting size | 30mm |
| Cutting thickness | 80mm |
| Cutting precision | +-0.2mm |
| Pressing paper mode | Hydraulic |
| Push paper mode | Program |
| Programmable | Yes |
| Display | LCD |
| Power | 220V/1100V;1.5KW |
| Machine size | 1250x1010x1390mm |
| Machine weight | 400kgs |

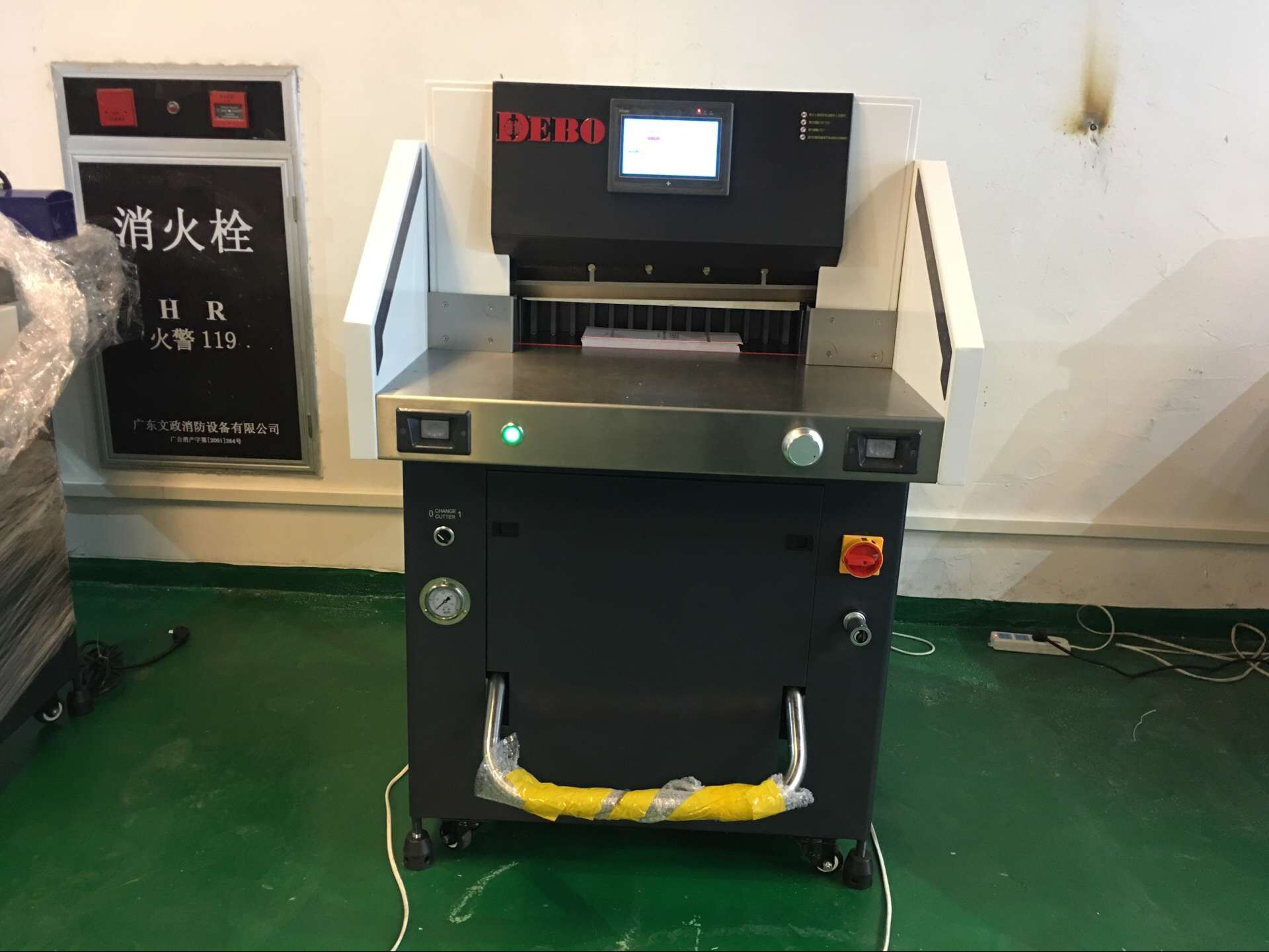

Products show (520mm Industrail Hydraulic Paper Cutting Machine )
Competitive Advantages
1. Cutter table with fully stainless steel finishing
2. With LCD touch screen
3. Using dual rail ball screw to push paper, more accrate and longer service life
4. With foot-pedal function
5. Safety with hang protect light
6. Powerful cutting, stable quality with one year warranty
7. 100% customer pass guaranteed and good after-sales service
