Hydraulic Paper Cutting Machine 670mm programmed control with touch LCD
♦ Touch Screen
♦ Folded back worktable
♦ Air rolling ball front work table
♦ CE standard, safety latch, safety wall, double auto. Breaker safety
♦ New instruction, Higher accuracy
♦ Touch screen : Optional 7” or 10” touch screen
♦ Setting: Program, equal parts size, manual memory
♦ Before blade cutting,After blade cutting and push,Any setting , intelligent and convenient
♦ Easy to input the size arithmetic,Support insert, delete and Shortcut key
♦ Optional language, parameter , time and inch/mm setting ,and Screen brightness adjustment .Self-checking is simple and directly !
♦ Shortcut key to choose,save !
♦ Centralized control circuit for easy maintenance
♦ Ball table, easy to feeding the paper
♦ More thickness stainless working plate , wear well !
♦ 85-88 mm cutting thickness !
♦ frequency conversion motor, more powerful !(optional)
♦ Side table - assemble
♦ Foldable and disassemble backstage
♦ Convenient for transport and enter the door
♦ Cutting sticker can re-use by 8 times
♦ integrated console
♦ Pedal press or auto.press
♦ More convenient to adjust the blade height
♦ Outside press pressure key
♦ Oil pressure display
♦ Widely double push guide rail and more accuracy ! Ball guide screw,servomotor increased by two times (optional)
♦ Underneath type press,double hydro-cylinder cutting,Oil proof and more convenient for service
♦ Press is more stably (straight and double guide rail)
Description of our paper cutting machine
DEBO Machinery we are the professional factory in Guangzhou, China, we mainly produce paper cutter machine, programmed paper cutters, hydraulic paper cutting machine, electric paper cutting machines, auto paper cutting machine, semi auto paper cutting machine, we have our own QC department and R&D team. All of our paper cutter machine are higher quality with CE standard.
Product Features
DEBO hydraulic paper cutting machine DB-670V8-1 can set 100 programs, each program can set 20 cuts, it is with two different motors for paper presser and paper cutter, it is for cutting paper sheets, books and photo albums etc...Our paper cutting machine is easy for operation with english manual and working video. higher value and competitive prices.We have one year warranty for our Paper cutting machine.
Specifications
| Item | 670mm hydraulic paper cutting machine |
| Model no | DB-670V8-1 |
| Max cutting size | 670mm |
| Min. cutting size | 30mm |
| Cutting thickness | 80mm |
| Cutting precision | +-0.2mm |
| Pressing paper mode | Hydraulic |
| Push paper mode | Program |
| Programmable | Yes |
| Display | LCD |
| Power | 220V/1100V;1.5KW |
| Machine size | 1220x960x1550mm |
| Machine weight | 500kgs |

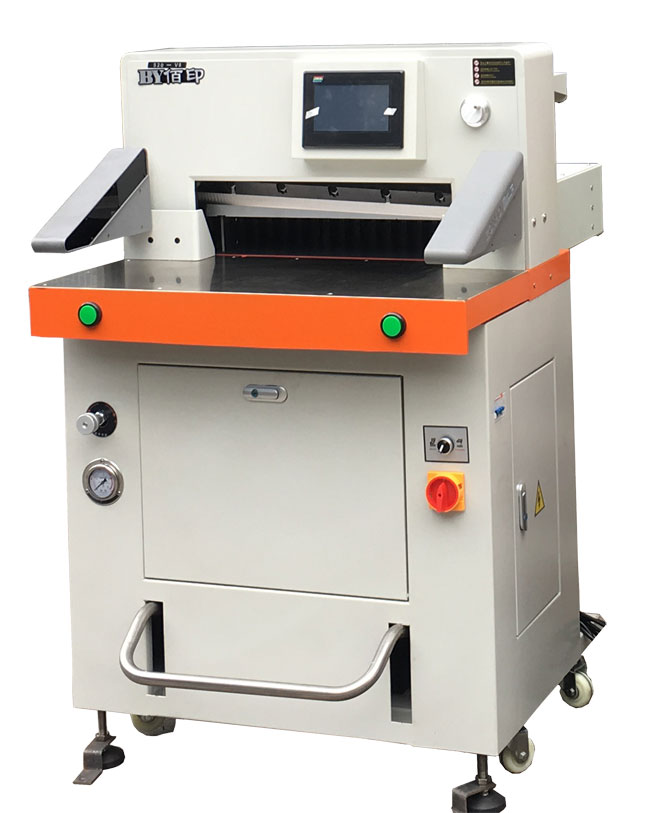

Products show (Hydraulic Paper Cutting Machine 670mm programmed control with touch LCD )
Competitive Advantages
1. Cutter table with fully stainless steel finishing
2. With LCD touch screen
3. Using dual rail ball screw to push paper, more accrate and longer service life
4. With foot-pedal function
5. Safety with hang protect light
6. Powerful cutting, stable quality with one year warranty
7. 100% customer pass guaranteed and good after-sales service
