Digital creasing machine,Auto Paper creaser perforating ,Paper Creasing Machine

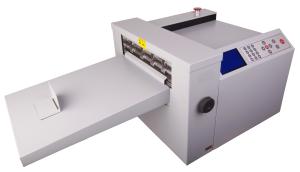

A3 High Speed Creaser Perforating Digital Automatic Paper Creasing Machine
Advantages Details
♦ Can read out the thickness of book from perfect binder on-line.
♦ 7" touch screen, user-friendly interface.
♦ Pressure can be adjusted to meet different paper.
♦ Auto distinguish different module.
♦ Kinds of alarming, such as paper jam, no paper, blocking and so on.
♦ Tens of common size stored for quick usage.
♦ Large storage for setting data.
♦ Levels of security design, protect operators from any danger.
♦ Foldable collect table, and can be adjusted in height and length.
♦ High precision of servo motor, accuracy up to ±0.2 mm.
♦ Feeding System , Up and down Suction by Pump .
♦ Side gauge can be fine adjust according to different angle of paper.
♦ Independent set according to customs products, size in inch or mm.
♦ Different module for option, easy to replace.
♦ Simple to operate
♦ With up to 16 creasers per sheet
♦ Paper size up to SRA3
♦ Fully automatic paper creaser
♦ 3 creasing options
The DB-YH360K is a fully automatic paper creaser optional the latest in a series of creasing systems.
The RD-Range of digital creasing machines can crease up tp 16 creases for range from 70gsm to 400gsm.Simple to opperate, with paper flow detection.
The DB-YH360K is the latest in the range,giving a high capacity in-feed, with double detection, that rejects the second sheet, without interrupting the paper flow.
Specifications
| Item | Digital paper creasing machine |
| Model no | DB-YH360K |
| Max creasing width | 360mm |
| Max creasing thickness | 450GSM |
| Creasing type | single line, double line, dotted line |
| Creasing Accuracy | Can reach to mm |
| Creasing time | Adjustable |
| Machine size | 540X500X400MM |
| Net Weight | 50.00KGS |
Digital creasing machine,Auto Paper creaser perforating for A3/A4 Paper Creasing Machine
Features:
1. Keyboard control panel, fast set creasing position
2. Apply for various paper with thickness range of 100g-400g
3. Different creasing knife for options
4. Bilingual display, human-friendly design, no paper/paper jam detection
device
5. Creasing skew correction, free adjustment of creasing depth
6. Max paper length is 3m
